Resistance crucible furnaces for melting of cupper alloys

suprotivitelna-pesht

ТЕ 120/13

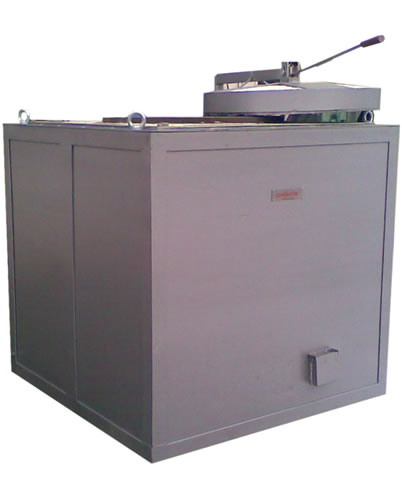

Resistance stationary crucible furnaces

Type	Crucible	Т °C	Power kW	Габаритни размери			Weight kg	Productivity Cu alloys kg/h
Type	Crucible	Т °C	Power kW	A mm	B mm	C mm	Weight kg	Productivity Cu alloys kg/h
TE 16/13	A 80	1300	18	930	930	850	630	48
TE 40/13	A 200	1300	26	1030	1030	1000	670	80
TE 80/13	А 350	1300	30	1080	1080	1040	790	90
TE 120/13	BU 200	1300	50	1150	1150	1070	980	190

Main features of the furnaces:

Furnace’s chamber temperature – 1300 ºС, 1400ºС.
The furnace’s base represents welded frame of shaped metals
High quality isolation made up of light weight fireproof and fibrous heat isolation materials
Coil heating elements from KANTHАL. The positioning of the coils over the ceramic tubes increases the life of the heating apparatus and also ensures uninterrupted heat emission in the working space
Short time for heating up
Low consumption of power energy
The mouth of the furnace is protected by a cast-iron ring
Thermocouple type S

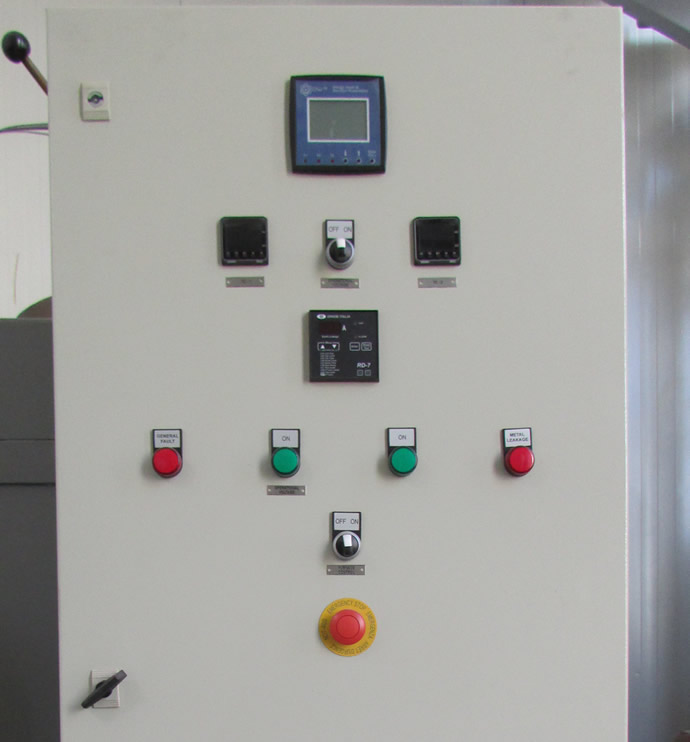

Control panel system/h3>
The control panel of the furnaces is made on the basis of modern temperature micro controllers and thyristor transformers. This increases significantly the work of the operator, decreases the costs for servicing the furnace and ensures better accuracy during the regulation of the temperature regime. Upon request of the customer, the control panel system may be done with contractors.
The heating regulators, which are included in the system, ensures direct control of the technological processes. They could be ordinary regulators, which could only maintain the temperature, or program regulators, which ensures conducting of the thermal processes according to given timing – a temperature characteristic.
Optional: a system for collecting and storage of information on the basis of PC.

ТЕ 80Н14

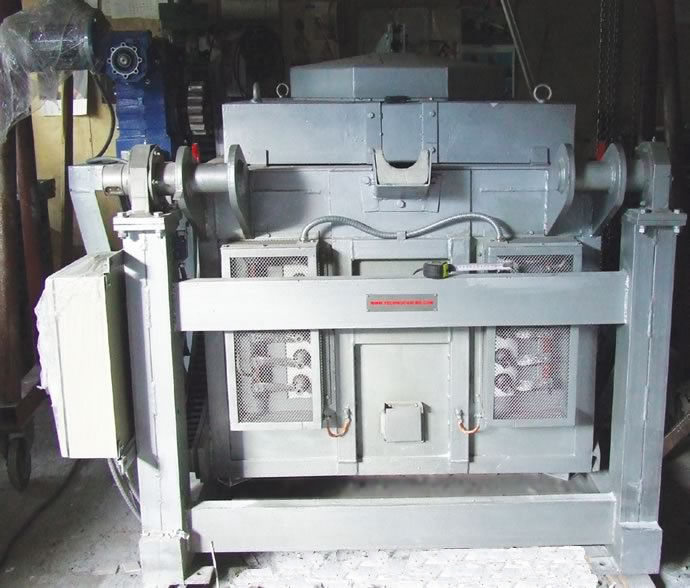

Resistance tilting crucible furnaces

Type	Crucible	Т °C	Power kW	Overall dimensions			Weight kg	Productivity** Cu alloys kg/h
Type	Crucible	Т °C	Power kW	A mm	B mm	C mm	Weight kg	Productivity** Cu alloys kg/h
TE 16H13	A 80	1300	18	1550	1130	1080	1000	48
TE 40H13	A 200	1300	26	1700	1400	1100	1200	80
TE 80H13	А 350	1300	30	1700	1500	1100	1600	90
ТЕ 80Н14*	А 350	1400	36	1650	1800	1100	2000	120
ТЕ 120Н14*	TP 287	1400	48	1800	1900	1150	2200	180
ТЕ 250Н14*	TP 412	1400	66	1900	2000	1250	2900	220
ТЕ 350Н14*	TP 587	1400	99	2100	2200	1400	3200	300

* made up with SIC heaters ** the specified productivity data is maximum

Main features of the furnaces:

Furnace’s chamber temperature – 1300 ºС, 1400ºС
Metal construction
High quality isolation made up of light weight fireproof and fibrous heat isolation materials
Coil heating elements from KANTHАL. The positioning of the coils over the ceramic tubes increases the life of the heating apparatus and also ensures uninterrupted heat emission in the working space. SIC heating apparatus are also used
Hydraulic or mechanical furnace tilting system
Short time for heating up
Low consumption of power energy
The mouth of the furnace is protected by a cast-iron ring
Thermocouple type S

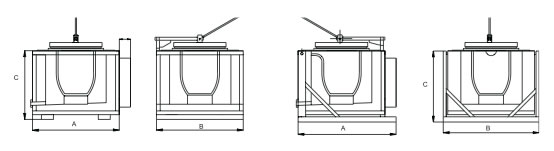

suprotivitelna-pesht-aluminii-razmeri
