Resistance furnaces for melting of aluminium and aluminium alloys

ТЕ 120/11

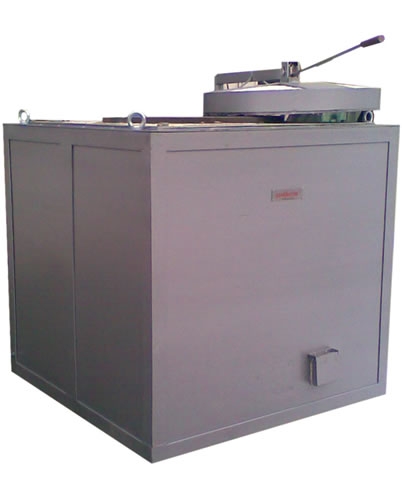

Resistance stationary crucible furnaces

Type	Crucible	Т °C	Power kW	Overall dimensions			Weight / kg	Productivity Al alloys kg/h
Type	Crucible	Т °C	Power kW	A mm	B mm	C mm	Weight / kg	Productivity Al alloys kg/h
TE16/11	A 80	1100	18	930	930	850	450	32
TE40/11	A 200	1100	26	1030	1030	1000	520	55
TE 80/11	А350	1100	30	1080	1080	1040	610	62
TE 120/11	BU 200	1100	50	1150	1150	1070	680	130
TE 180/11	BU 300	1100	60	1200	1200	1100	810	140
TE 210/11	BU 350	1100	60	1200	1200	1300	950	150
TE 300/11	BU 500	1100	70	1400	1400	1220	1120	170
TE 360/11	BU 600	1100	80	1400	1400	1320	1300	210
TE 480/11	BN 800	1100	110	1600	1600	1540	2200	240
TE 540/11	BN 900	1100	110	1600	1600	1640	2550	240

Main features of the furnaces:

Furnace’s chamber temperature – 1100 ºС.
The furnace’s base represents welded frame of shaped metals
High quality isolation made up of light weight fireproof and fibrous heat insulation materials
Coil heating elements from KANTHАL. The positioning of the coils over the ceramic tubes increases the life of the heating apparatus and also ensures uninterrupted heat emission in the working space
Short time for heating up
Low consumption of power energy
The mouth of the furnace is protected by a cast-iron ring
Thermocouple type K

Control panel system

The control panel of the furnaces is made on the basis of modern temperature micro controllers and thyristor transformers. This increases significantly the work of the operator, decreases the costs for servicing the furnace and ensures better accuracy during the regulation of the temperature regime.
The heating regulators, which are included in the system, ensures direct control of the technological processes. They could be ordinary regulators, which could only maintain the temperature, or program regulators, which ensures conducting of the thermal processes according to given timing – a temperature characteristic.
Optional: a system for collecting and storage of information on the basis of PC.

Resistance tilting crucible furnaces

Type	Crucible	Т °C	Power/ kW	Overall dimensions			Weight/kg	Productivity Al alloys kg/h
Type	Crucible	Т °C	Power/ kW	A mm	B mm	C mm	Weight/kg	Productivity Al alloys kg/h
TE 120H12	TP 287	1100	50	1800	1800	1200	1800	130
TE250H12	TP 412	1100	60	1950	1950	1500	2300	150
TE350H12	TP 587	1100	80	2050	2050	1500	2950	210
TE700H12	TBN 1100	1100	126	2200	2150	1750	3900	280

The tilting furnaces are accomplished with hydraulic or mechanical tilting system.
